housing systems for laying hens
Our productline LODGE and COMPART for laying hens
modular design
flexible design allows adaptation to different company sizes and needs
high automation
The eggs are collected via central belts. The tilting floor nests close automatically. Automatic feeding and locking systems are further examples of the automation of the systems.
optimal use of existing buildings
Different system widths adapt perfectly to existing buildings. The ratio of nests, feed, and system area is adjustable.
Please contact us for further information.
contact

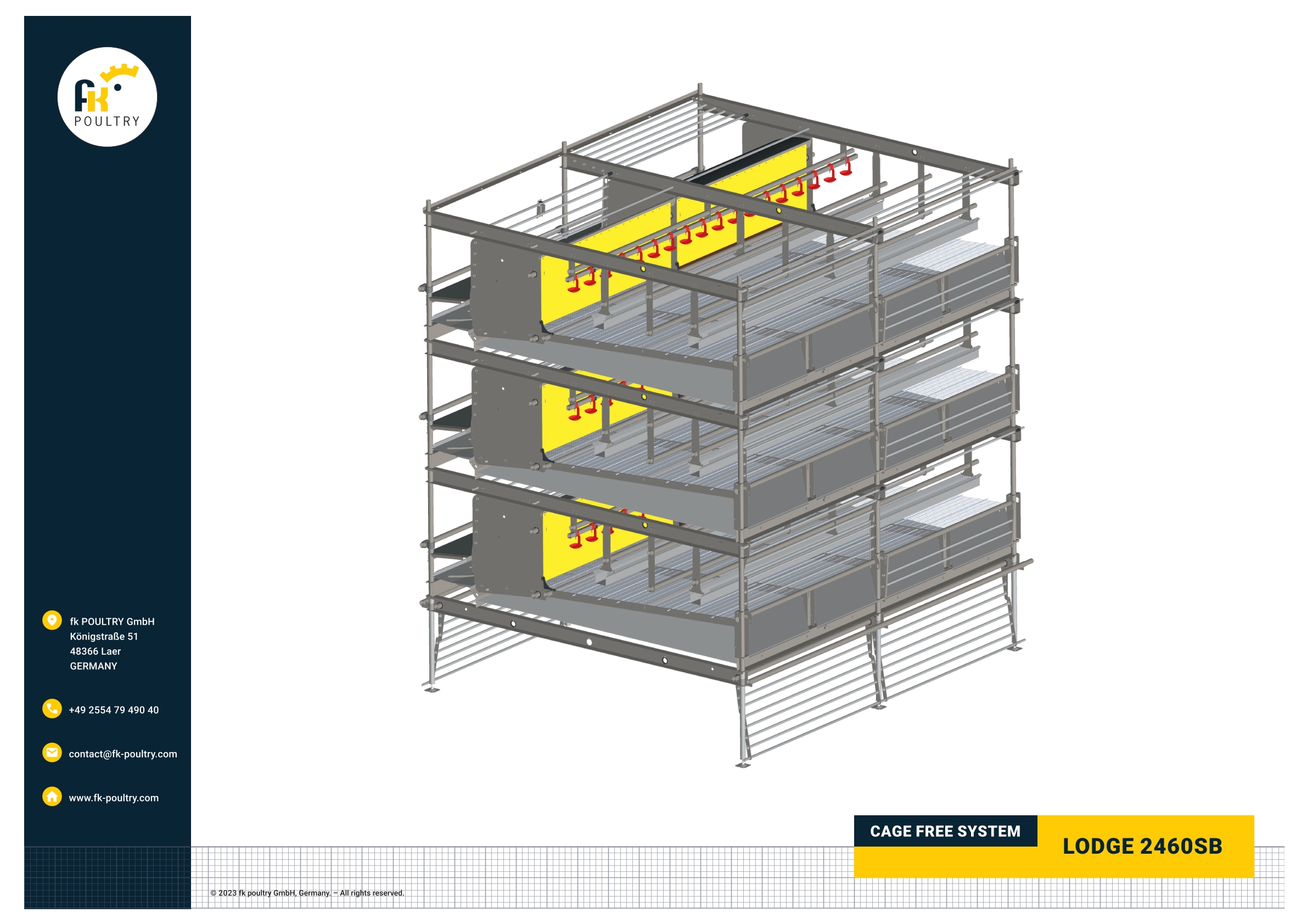

The Lodge 2100 / 2460 system with a system width of 2100 or 2460 mm fits perfect to enter cage free egg production. The location of feed, water and nest on each tier allows system doors for easy bird management at the start.
- The system has a modular design. System layouts from 1 to multiple tiers are possible, including the possibility of having a solid second flooring for scratch area.
- The system is sloped to one side, therefore all mislaid eggs roll on to the main egg belt and will be collected. A separate system egg collection is not necessary.
- The system comes in 2 different widths to maximize the bird numbers and utilize barn space in existing houses.
- The Nest space and pass through ratio can be adjusted to customer's individual needs for optimal bird numbers and system utilization.
- The system is equipped with a tilting nest box. The nest can be closed off at night, so dirt can fall off as well as birds don’t sleep in the nest and leave fresh droppings in the morning.
- There are system doors available to keep the birds locked inside for training purpose or for populating and depopulation
The Lodge 3200 with a system width of 3200 mm is designed for the demand of North American egg producers. The layout encourages an equal bird distribution throughout the barn.
- The system is equipped with a walkable service area for easy bird and system control.
- As an option, we offer system egg collection to gather all eggs that were not laid in the nest box.
- The Nest space and pass through ratio can be adjusted to customer's individual needs for optimal bird numbers and system utilization.
- The system is equipped with a tilting nest box. The nest can be closed off at night, so dirt can fall off as well as birds don’t sleep in the nest and leave fresh droppings in the morning.
The Lodge 3500 with a system width of 3500 mm is designed for the demand of European egg producers. The system is engineered according to KAT standards and performs excellent in free-range installation.
- The system has a center walkway for easy access for checking birds and equipment.
- As an option, we offer system egg collection to gather all eggs that were not laid in the nest box.
- The system is equipped with a tilting nest box. The nest can be closed off at night, so dirt can fall off as well as birds don’t sleep in the nest and leave fresh droppings in the morning.
- System outer platforms can be folded up to close off the system.
The COMPART-SYSTEM with a leg spacing of 1960 mm is an easy to operate and comfortable enriched cage system.
- The system can be built from 2 tiers up to 12 tiers.
- All feed troughs are fully accessible and also serve as bumper rail.
- The system is equipped with an egg-saver.
Advice and contact Let us advise you individually!
We look forward to answering your questions and also appreciate your suggestions and criticism. You can find a contact address, download information material or request it using our order form. Do not hesitate to contact us!
